PiKVM v3.2 Plastic Case for 3D printing
When printing the case, you can choose the following options:
- The presence or absence of an OLED screen (used to display the IP address and other information).
- The presence or absence of holes for the AUM v3.3 (Advanced USB Module, most likely you don't have it).
Buy options
- Small 5v fan strongly recommended to avoid overheating in the case.
- I2C OLED screen.
Building
See this video.
The front part
Choose ONE of them.
| Variant | Description |
|---|---|
 |
The front part of the case WITHOUT a hole for the OLED |
 |
The front part of the case with a hole for installing the OLED |
The back part
Choose ONE of them.
| Variant | Description |
|---|---|
 |

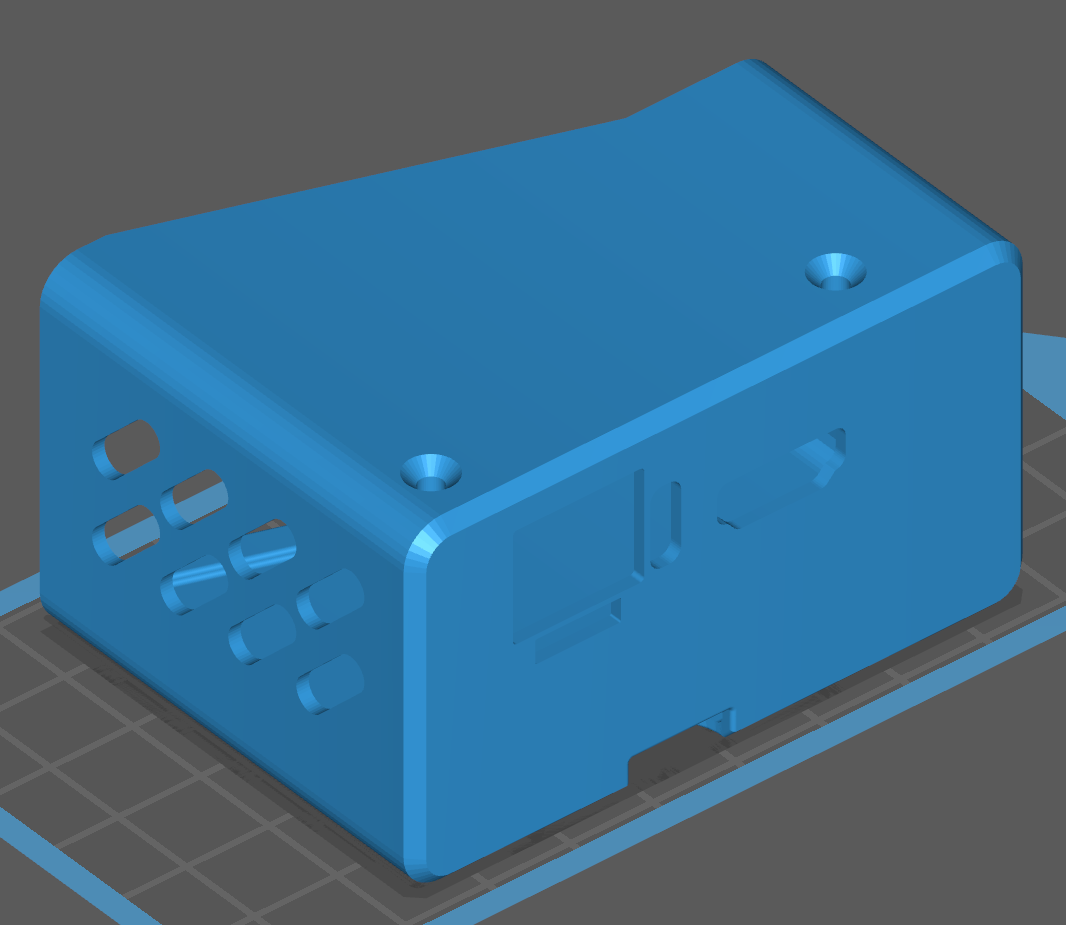

The back part of the case WITHOUT AUM holes |
 |

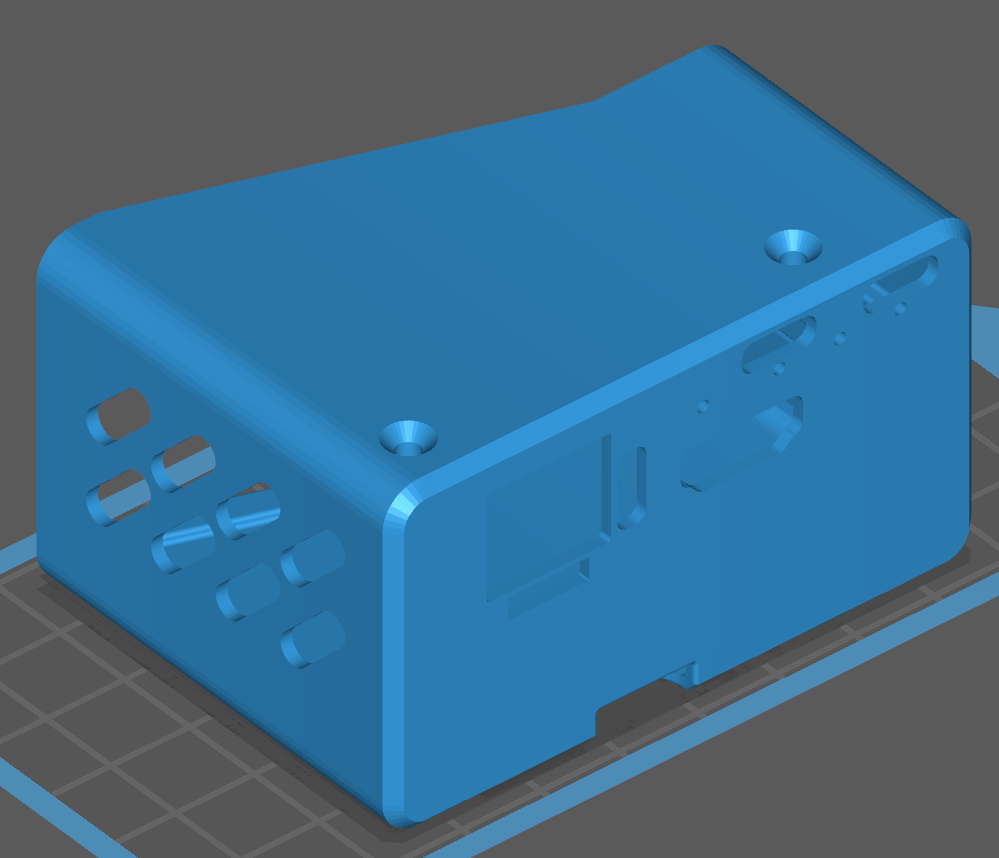

The back part of the case for installing the AUM |
Spacers
| Type | Description |
|---|---|
 |
6.2mm spacer, required TWO pieces |
 |

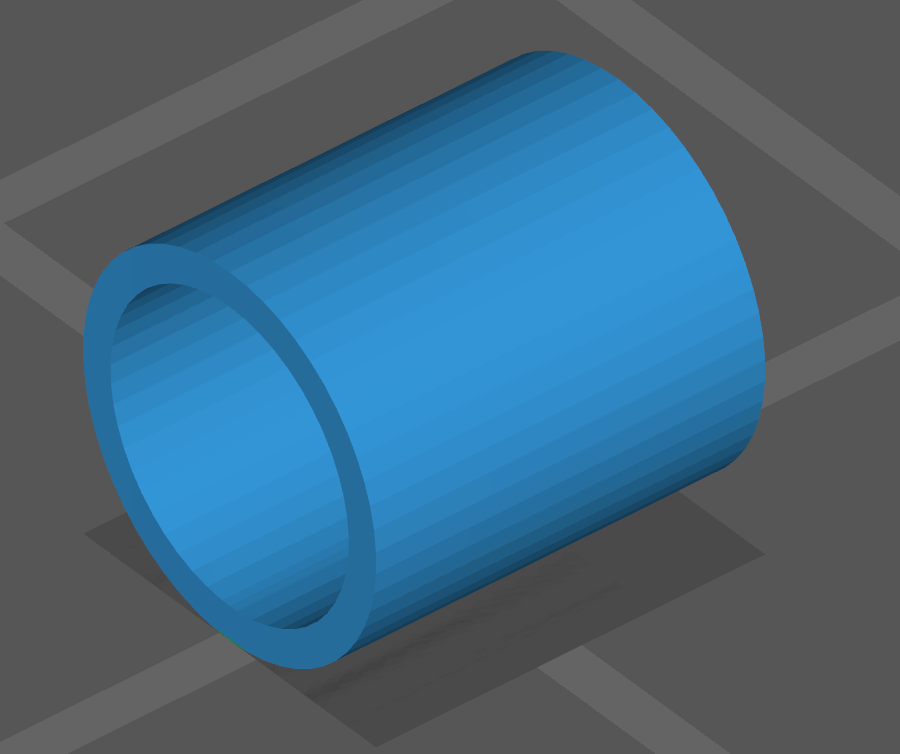

2mm spacer required ONE without AUM or TWO for AUM |
 |

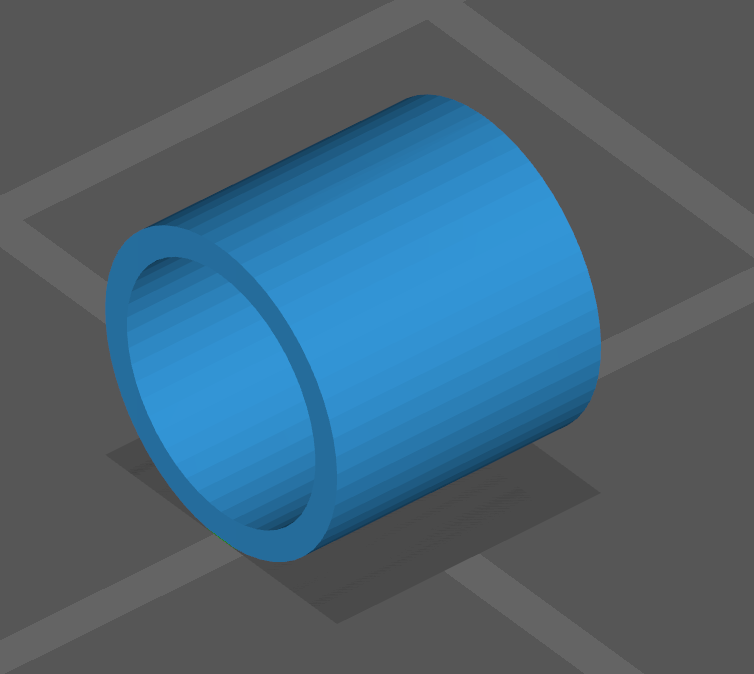

1mm spacer required ONE for AUM only |
 |

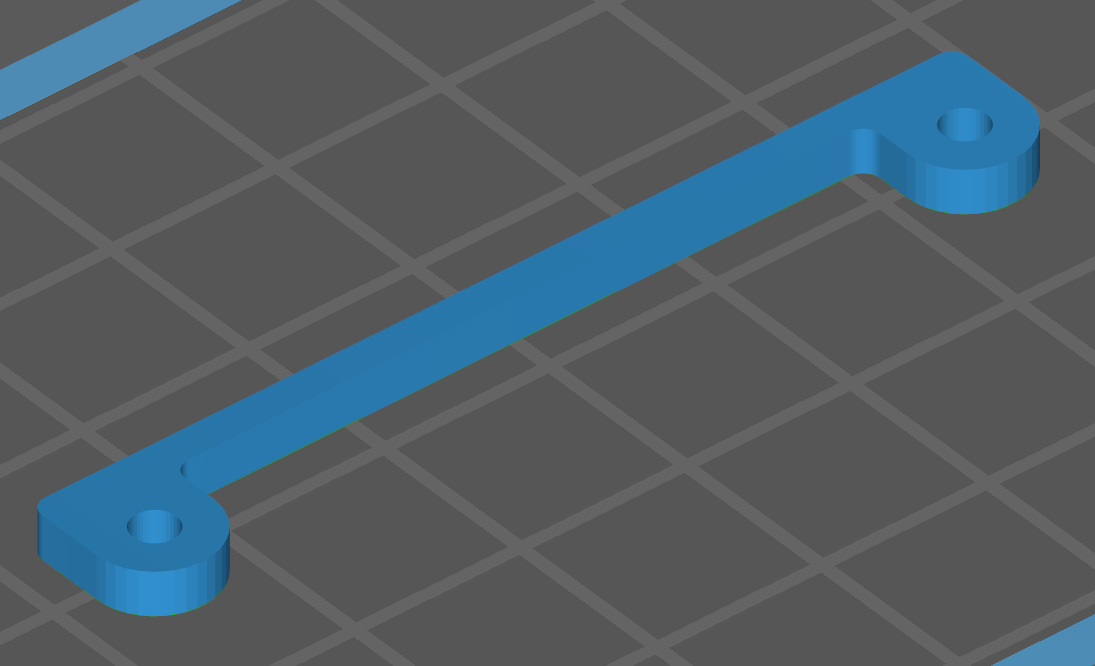

Low spacer required ONE |
