nickol-knx-mcp

A design-time KNX / ETS6 assistant exposed as an MCP server.

It reads your .knxproj and validates it (naming · DPT & sub-DPT · command↔status · KNX Secure · Matter-readiness), repairs it (proposes concrete fixes — infers DPTs, synthesises missing status GAs), decomposes devices into their group-address recipes (or the exact vendor object model, parsed straight from the ETS application programs into a local device catalog), diffs two project versions, grades completeness, and generates Home Assistant YAML, ETS-importable exports (XML/CSV), an as-built handover pack, an acceptance test protocol and a KNX IoT semantic export — all without ever touching the live KNX bus.

🇷🇺 Русская версия: README.ru.md

---

🎬 Explore the live interactive demo & dashboard →

New — a whole demo house. examples/demo-home ships a synthetic 239-GA / 47-Function project, the tool's generated report + Home Assistant config + ETS export, and a full smart-home “brain” — circadian lighting, an 8-factor climate setpoint, a presence/season/time state machine and statistics — driving a 5-view dashboard. See it all on the live site ↗.

---

🖥️ The dashboard — live in Home Assistant

Real screenshots from a live Home Assistant running the demo house. They show the tool's assembled entities at work: RGBW / RGB / CCT colour lights, six floor-heating climate zones (target, mode and valve %), a circadian lighting curve and a computed climate setpoint — not set by hand.

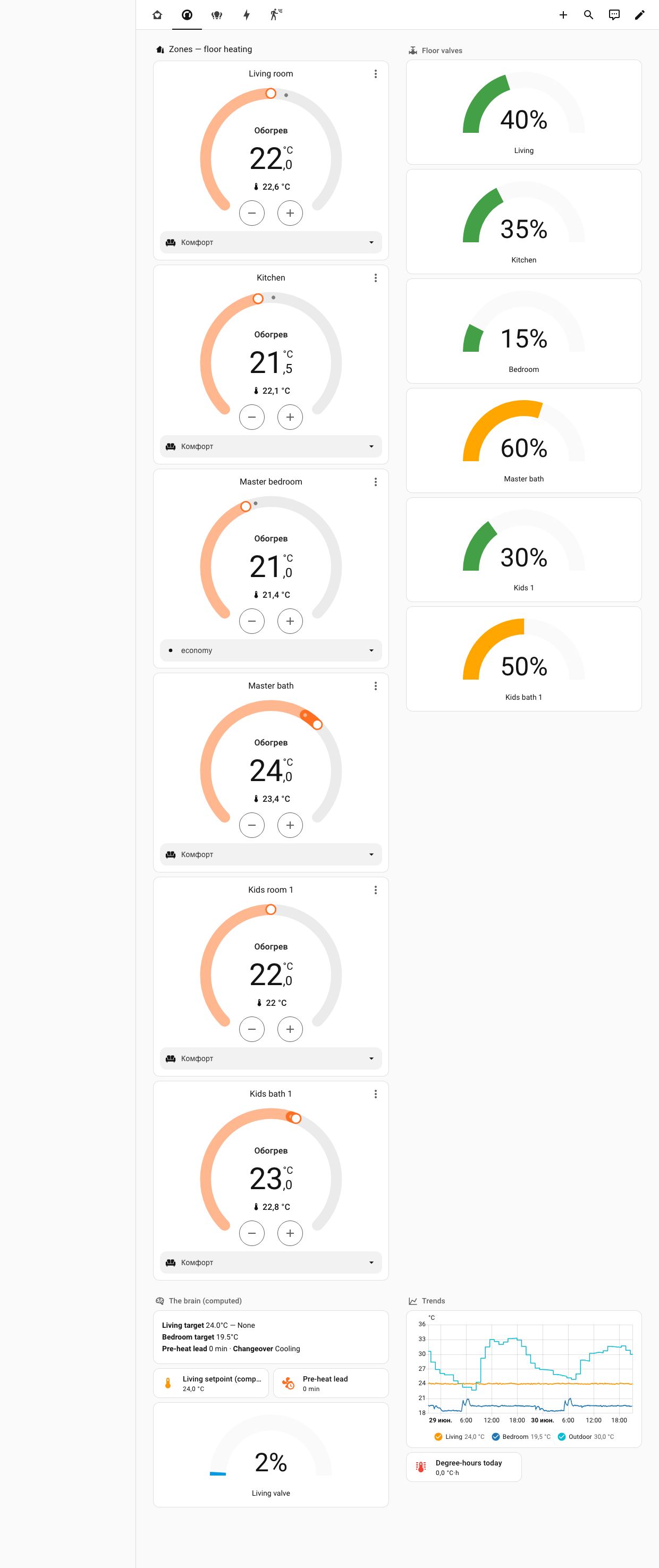

Climate	Lighting
Energy & stats	Presence

▶ Explore it interactively on the live site → · config in examples/demo-home/ha-brain

---

🧪 Status & call for testers

This is a public beta. The full pipeline passes an end-to-end smoke test on a synthetic 16-group-address project, but it has had limited testing against real-world .knxproj files — and real ETS projects are wonderfully messy and diverse.

👉 If you have an ETS5/ETS6 project, please try it and tell us what happens. Open a Real-project test report issue. The tool is read-only and never connects to a bus, so testing is safe (see Safety model). See CONTRIBUTING.md for details.

💬 Join the discussion → — say hi, ask anything, or share what the tool found on your project.

---

Why this exists

As of mid-2026 there is no off-the-shelf ETS6 ↔ Claude / MCP tool. The KNX community has been explicitly asking for an integration that can inspect and help modify projects (adding / renaming devices and group addresses) through an AI/CLI workflow. This package fills exactly the design-time layer — the missing one.

The recommended full setup is four layers; only one needs to be built from scratch:

Layer	Purpose	What to use	Build it?
1. Live	states, control, debugging a running house	official Home Assistant MCP Server + KNX (XKNX) integration	No, already exists
2. Design-time	parse .knxproj, validate DPT/naming/status + GA-intent de-noise, generate HA YAML (colour lights + climate assembled) & ETS XML/CSV	nickol-knx-mcp (this package)	YES — this is the gap
3. Files + Git	YAML/CSV/XML, versioning the address schema	standard filesystem + git MCP servers	No, already exists
4. Skill	design rules (GA structure, naming, DPT, scenes)	CLAUDE.md in this package	No, included

Safety by design: layer 2 (this server) physically cannot connect to a bus. It has no network/bus dependency at all — it only reads .knxproj and writes files into a confined workspace. The "never write to a live bus" requirement is enforced structurally, not by promise. Any real interaction with the house goes only through layer 1 (Home Assistant).

---

What the server does

• Parses password-protected ETS5/ETS6 .knxproj files via xknxproject (3.9.x).
• Extracts group addresses, DPTs, devices, topology, descriptions, and ETS Functions.
• Classifies every GA: category (lighting / shutter / hvac / sensor / scene / energy / diagnostics) and kind (command / status / sensor) — from the DPT plus multilingual (EN/DE/RU) keywords in the name.
• Validates naming against a 3-level structure and a configurable regex.
• Finds missing status addresses — primarily from ETS Function roles, falling back to name-token pairing (command in …/0/…, feedback in …/4/… is common, so it matches by name tokens rather than by middle-group adjacency).
• Catches DPT problems: missing DPT, mismatch between a Communication Object and its GA, and the same logical name carrying different DPTs.
• Classifies GA purpose to cut noise — every group address is tagged functional / reserve / logic / scratch. Intentional non-functional GAs (spare "Reserve" placeholders, internal logic signals, scratch leftovers) are kept out of the error and missing-status checks, so the report doesn't cry wolf on real projects (e.g. a 685-GA Zennio project: false errors 29 → 6).
• Generates Home Assistant KNX YAML — category by category, conservatively: covers → colour / dimmable lights → switches → climate → sensors/binary. Multi-address entities are assembled: lights gather on/off + brightness + RGBW / RGB / colour-temperature + their statuses; climate entities gather current temp, target-temp status, operation/controller mode and valve command-value (emitted only when the HA-required keys are present, else sent to review). Ambiguous items (e.g. DPT 5.001 — brightness vs blind position) are not guessed; they go into a review list instead.
• Generates ETS-importable group addresses in XML (the recommended knx.org/xml/ga-export/01 schema) and CSV (ETS's native layout).
• Writes a Markdown report (inventory + 🔴🟡🔵 findings + HA-mapping preview + next steps) for human review before any import.

Beyond validation — the design & repair layer (v0.3–v0.6):

• Repairs, not just flags (suggest_repairs) — for every finding it proposes a concrete fix: infer a DPT from the name, correct a suspect sub-DPT, synthesise a status GA in a free slot, add an absolute-brightness GA. Suggestions only; accepted GAs feed the ETS export.
• Device library (decompose_device) — a KNX actuator channel is not one GA; each channel expands into command/status/dimming/position/mode objects. Given an order number or type it returns the decomposition recipe (Zennio + ABB families) so a spec/ТЗ device list becomes a GA structure.
• As-built handover pack (generate_handover_pack) — equipment inventory, group-address map by domain, command↔status coverage %, KNX Secure posture + keyring checklist, itemised QA and a standalone topology SVG, in one command.
• Sub-DPT sanity, KNX Secure posture, Matter-readiness, energy-domain checks; a semantic project diff, a completeness grade (skeleton vs as-built), an acceptance test-protocol draft, and a KNX IoT (Turtle/RDF) semantic export.
• Design methodology: docs/spec-to-structure.md — reconstruct a group-address structure from a project spec (~90 % of the taxonomy/logic is reproducible; the exact per-device object count is the integrator's parameterisation).

All writes go only into the workspace directory (NICKOL_KNX_WORKSPACE, default ./knx-workspace); writes outside it are rejected.

---

Installation

Requires Python 3.10+.

git clone https://github.com/NickoScope/nickol-knx-mcp.git
cd nickol-knx-mcp
python3 -m venv .venv && source .venv/bin/activate
pip install -e .

Dependencies: mcp>=1.10, xknxproject>=3.8, PyYAML>=6.0.

On Debian/Ubuntu, if pip complains about an externally-managed environment, use a venv (as above) or pip install -e . --break-system-packages. If PyJWT conflicts, run pip install mcp --ignore-installed PyJWT first.

Verify:

python tests/test_pipeline.py     # synthetic 16-GA project, end-to-end smoke test
nickol-knx-mcp                    # start the MCP server (stdio)

---

Connecting to Claude

Claude Desktop

examples/claude_desktop_config.json wires up nickol-knx + filesystem + git + home-assistant. Minimal fragment (macOS config path: ~/Library/Application Support/Claude/claude_desktop_config.json):

{
  "mcpServers": {
    "nickol-knx": {
      "command": "nickol-knx-mcp",
      "env": { "NICKOL_KNX_WORKSPACE": "/path/to/your/knx-workspace" }
    }
  }
}

Claude Code

claude mcp add nickol-knx \
  -e NICKOL_KNX_WORKSPACE="$HOME/knx-workspace" \
  -- /absolute/path/to/.venv/bin/nickol-knx-mcp

Then drop CLAUDE.md into your project root — it acts as an ETS Assistant skill (design rules, safety rules, 3-level GA structure, command/status pairing, DPT discipline, naming, KNX Secure keyring handling, and the recommended workflow).

---

MCP tools (25)

Read

Tool	Purpose
load_project(path, password?, language?)	parse a .knxproj (read-only) and cache it
list_group_addresses(category?, kind?)	list GAs with classification and filters
get_devices()	devices + their communication objects
get_topology()	topology (areas / lines / devices)

Validate

Tool	Purpose
check_naming(name_regex?)	validate naming / 3-level structure
check_missing_status()	actuators lacking a status object
check_dpt()	missing / inconsistent DPTs + sub-DPT sanity (temp→9.001, power→14.056…)
check_secure()	KNX Data Secure posture + keyring handover checklist
check_matter()	Matter-readiness lint (which functions round-trip to a Matter cluster)
check_energy()	metering/energy DPT check + PV/battery/EVSE scaffold
analyze_all(name_regex?)	run every check at once

Repair & design

Tool	Purpose
suggest_repairs()	propose fixes, not just flag — infer DPTs, synthesise status/brightness GAs
suggest_names()	naming-hygiene suggestions
decompose_device(order_number, channels?)	device → GA decomposition: exact vendor model from a local catalog (NICKOL_KNX_CATALOG), or generic recipe
list_device_recipes()	the built-in device library (Zennio + ABB families)
parse_devices_from_project(path, output_path?, password?)	extract exact device object models from the app-programs inside a .knxproj/.knxprod → device-library YAML (feeds the local catalog)
grade_completeness()	grade a project: bare skeleton vs as-built
diff_projects(path_a, path_b, …)	semantic diff between two .knxproj versions

Generate

Tool	Purpose
generate_ha_package(output_path?)	HA KNX YAML (colour + climate + expose) + review list
generate_ets_group_addresses(fmt="xml"|"csv", output_path?)	ETS-importable GAs
generate_handover_pack(output_dir?)	as-built handover: inventory, GA map, coverage, Secure, QA, topology.svg
generate_test_protocol(output_path?)	functional acceptance protocol (command → expected status)
generate_knx_iot(output_path?)	KNX IoT semantic export (Turtle/RDF)
project_report(output_path?, name_regex?)	Markdown report
workspace_info()	workspace path + safety guarantees

---

Typical workflow

1. load_project → point it at your .knxproj (+ password if protected).
2. analyze_all or project_report → read the findings; human review first.
3. Fix naming/DPT/status in ETS (by importing generated GAs or manually).
4. generate_ets_group_addresses(fmt="xml") → import the missing GAs into ETS.
5. generate_ha_package → place the YAML into Home Assistant; resolve review items by hand.
6. Keep everything (.knxproj export, HA configs, address schema) in Git.
7. Touch the live house only through the Home Assistant MCP (layer 1).

---

Limitations (honest)

• command/status and category classification is a heuristic (DPT + names + ETS Functions). On messy projects with no Functions and non-standard names, false negatives/positives are possible — which is why the report is always for human review, and ambiguity goes to review, not into config.
• DPT 5.001 is structurally ambiguous (brightness vs position); it's disambiguated by keywords — double-check with non-standard naming.
• The HA generator is conservative: it would rather defer an item to review than emit a wrong entity.
• The server never writes to the bus and never talks to ETS directly — ETS exchange is file import/export of GAs only.
• Tested only on a synthetic project so far. Real .knxproj files vary a lot — hence the call for testers.

---

🔒 Safety model

• No bus access, structurally. There is no networking or bus library in the dependency tree. workspace_info() reports bus_access: false.
• Read-only on your project. project.py is the only module that touches .knxproj, and it only reads.
• Confined writes. All output is constrained to NICKOL_KNX_WORKSPACE; paths outside it are rejected.
• Human-in-the-loop. Generate a project_report and review it before importing into ETS or deploying into Home Assistant.

Found a security issue? See SECURITY.md.

---

Package layout

nickol-knx-mcp/
├── nickol_knx_mcp/
│   ├── dpt_map.py        # DPT → category / kind / HA platform / value_type
│   ├── project.py        # the ONLY module that reads .knxproj (read-only)
│   ├── pairing.py        # command↔status pairing by name tokens
│   ├── analyze.py        # naming / missing-status / DPT checks
│   ├── generate_ha.py    # Home Assistant KNX YAML generation
│   ├── generate_ets.py   # ETS XML + CSV generation
│   ├── report.py         # Markdown report
│   └── server.py         # FastMCP server, 25 tools, confined writes
├── tests/test_pipeline.py
├── examples/claude_desktop_config.json
├── CLAUDE.md             # ETS Assistant skill / playbook
├── pyproject.toml
└── README.md

---

Contributing

Testers and contributors are very welcome — especially real-project test reports. See CONTRIBUTING.md and the issue templates.

License

MIT © 2026 Nikolay Miroshnichenko

Not affiliated with or endorsed by the KNX Association. "KNX" and "ETS" are trademarks of the KNX Association cc. This is an independent, community tool.
